Maxx Model CNC Aluminum Hopup Chamber for M4 (Model: M4i - PRO)

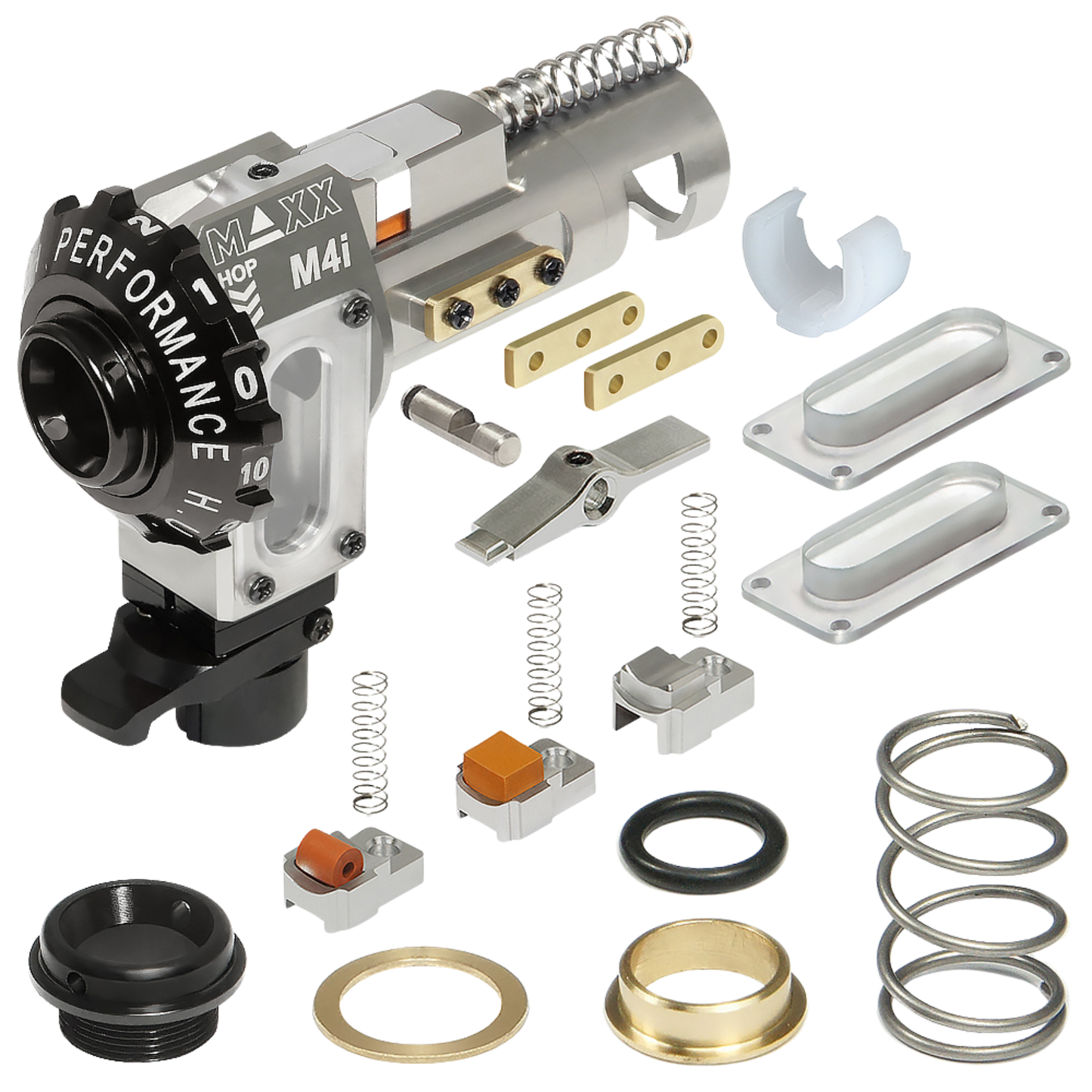

What's Included?

• Maxx Model CNC Aluminum Hopup Chamber for M4 (Model: M4i - PRO)
• 2 x CNC Acrylic Side Cover
• 2 x CNC Brass 2.9mm Side Wing
• 1 x CNC Steel Pivot Pin
• 1 x CNC Aluminum Hopup Lever
• 1 x CNC Aluminum Soft Round Nub
• 1 x CNC Aluminum Soft Flat Nub (4mm)
• 1 x CNC Aluminum Hard Concave Nub (4mm)
• 3 x Steel Nub Spring
• 1 x CNC Steel Spring Guide
• 1 x Steel Upper Compression Spring
• 1 x Steel Center Compression Spring
• 1 x CNC Delrin Locking C-Clip
• 1 x CNC Brass Barrel Spacer
• 1 x Brass Barrel Spacer Holder Oring
• 1 x CNC Aluminum Rotary Dial Knob
• 1 x CNC Aluminum Inlet Adaptor (OD12mm)
• 1 x CNC Brass Inlet Spacer

Features

• Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
• Precision rotary dial design for fine hopup adjustments
• Re-engineered the hopup levers and nubs to work best with R-hop, Flat-Hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
• Accepted the nozzle length from 21.00mm to 21.25mm
• Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
• Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight
• Compatible with any 12mm inner bore ICS AEG Gearbox/HPA Engine nozzle outlets
• Specially designed with BB Latching System to prevent dropping BBs after removing the magazine, manually opened to release BBs from inside hopup chamber by hand

Technical Specifications:

• Model Number: HU-MX-MX-HOP010MI
• Overall Length: 51.65mm

• Overall Height: 37.75mm

• Inlet Adaptor Outer Diameter (to fit into Gear Box): 12mm

• Hub Outer Diameter (to fit into Outer Barrel): 12mm

• Hub Inner Diameter (to fit Nozzle): 8mm

• Feeder Outer Diameter (to fit magazine): 8.85mm

• Feeder Length (to fit magazine): 6mm

• Application: For most ICS CXP/CS4/EBB M4/M16 AEG series rifles

• Material: Aluminum 6061

Q&A

Q: What is the Maxx Model CNC Aluminum Hopup Chamber for M4 (Model: M4i - PRO)?
A: The Maxx Model CNC Aluminum Hopup Chamber (M4i - PRO) is a high-precision hopup unit designed for M4/M16 AEG rifles, specifically ICS CXP/CS4/EBB series. It is made from solid aircraft-grade aluminum and incorporates advanced features to ensure better accuracy, consistency, and durability during airsoft gameplay.

Q: What does the BB Latching System do?
A: The BB Latching System prevents BBs from dropping out of the chamber when you remove the magazine. This system can also be manually opened to release any remaining BBs inside the hopup chamber by pressing the Latching Arm.

Q: Is this hopup chamber compatible with other parts and setups?
A: Yes, the Maxx Model M4i PRO is compatible with most aftermarket soft and hard rubber buckings. It also works with any 12mm inner bore ICS AEG Gearbox or HPA Engine nozzle outlets, ensuring broad compatibility across setups.

Q: How does the CNC Delrin Locking C-Clip improve performance?
A: The CNC Delrin Locking C-Clip securely holds the inner barrel in place, preventing wobbling or twisting. This ensures that your inner barrel stays centered and provides consistent accuracy during use.

Q: What hopup configurations work best with this chamber?
A: This chamber is optimized for R-hop, Flat-hop, and Standard-hop setups. The re-engineered levers and 4mm nubs ensure straight and accurate shots for every configuration.

Q: Is it easy to make hopup adjustments with this chamber?
A: Yes, the precision rotary dial design allows for fine hopup adjustments, giving players greater control over their shot trajectory and performance.

Q: How does this hopup chamber contribute to improved accuracy and consistency?
A: Its tight tolerance design, precision components, and stabilization features like the BB Latching System and compression springs help to maintain straight, consistent shots. Additionally, the rotary dial allows precise hopup adjustments for better accuracy.

About the Maxx Model CNC Aluminum Hopup Chamber for M4 (Model: M4i - PRO)

The Maxx Model CNC Aluminum Hopup Chamber for M4 (Model: M4i - PRO) is a high-performance hopup unit designed with precision engineering to elevate the performance of M4/M16 AEG rifles, specifically within the ICS CXP/CS4/EBB series. Machined from a solid block of aircraft-grade aluminum, this hopup chamber is built to withstand the rigors of airsoft gameplay while providing consistent accuracy. It features tight tolerances that improve overall performance by maintaining alignment and minimizing wobble, ensuring your shots are on point every time. The precision rotary dial allows for fine adjustments, making it easy to dial in the perfect hopup setting for various BB weights and playing conditions.

One of the standout features of the M4i PRO is its versatility when it comes to hopup configurations. The hopup levers and nubs have been re-engineered to work seamlessly with R-hop, Flat-hop, and Standard-hop setups. This means that whether you are seeking long-range accuracy or fast-paced skirmish performance, this hopup chamber can be tailored to meet your needs. The unit also accepts a nozzle length between 21.00mm and 21.25mm, making it compatible with a wide range of AEG setups, and it works perfectly with both soft and hard rubber buckings without causing a drop in FPS or misfeeding BBs.

The M4i PRO also features an innovative BB Latching System designed to prevent BBs from dropping after the magazine is removed. This system not only saves time during reloads but also ensures that every BB is put to use. For added convenience, the Latching Arm can be manually pressed to release any remaining BBs inside the hopup chamber. This attention to detail in design extends to the CNC Delrin Locking C-Clip, which holds the inner barrel securely in place, preventing unwanted twisting or wobbling during use. Combined with three compression springs that keep the hopup chamber precisely centered, this hopup unit offers consistent and reliable performance, making it an essential upgrade for airsoft enthusiasts seeking greater accuracy and durability on the field.
