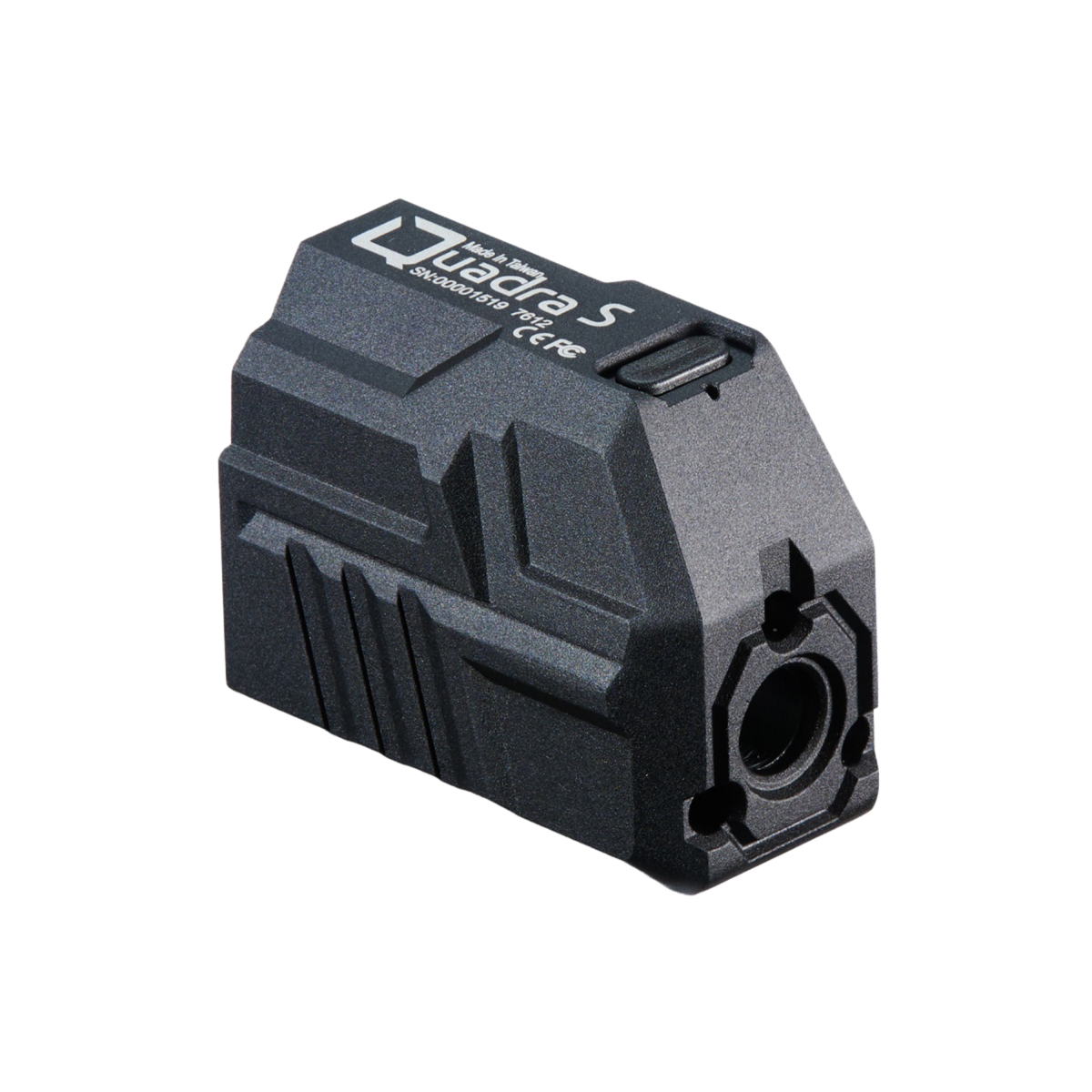

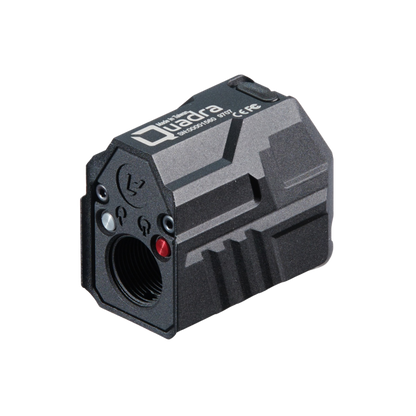

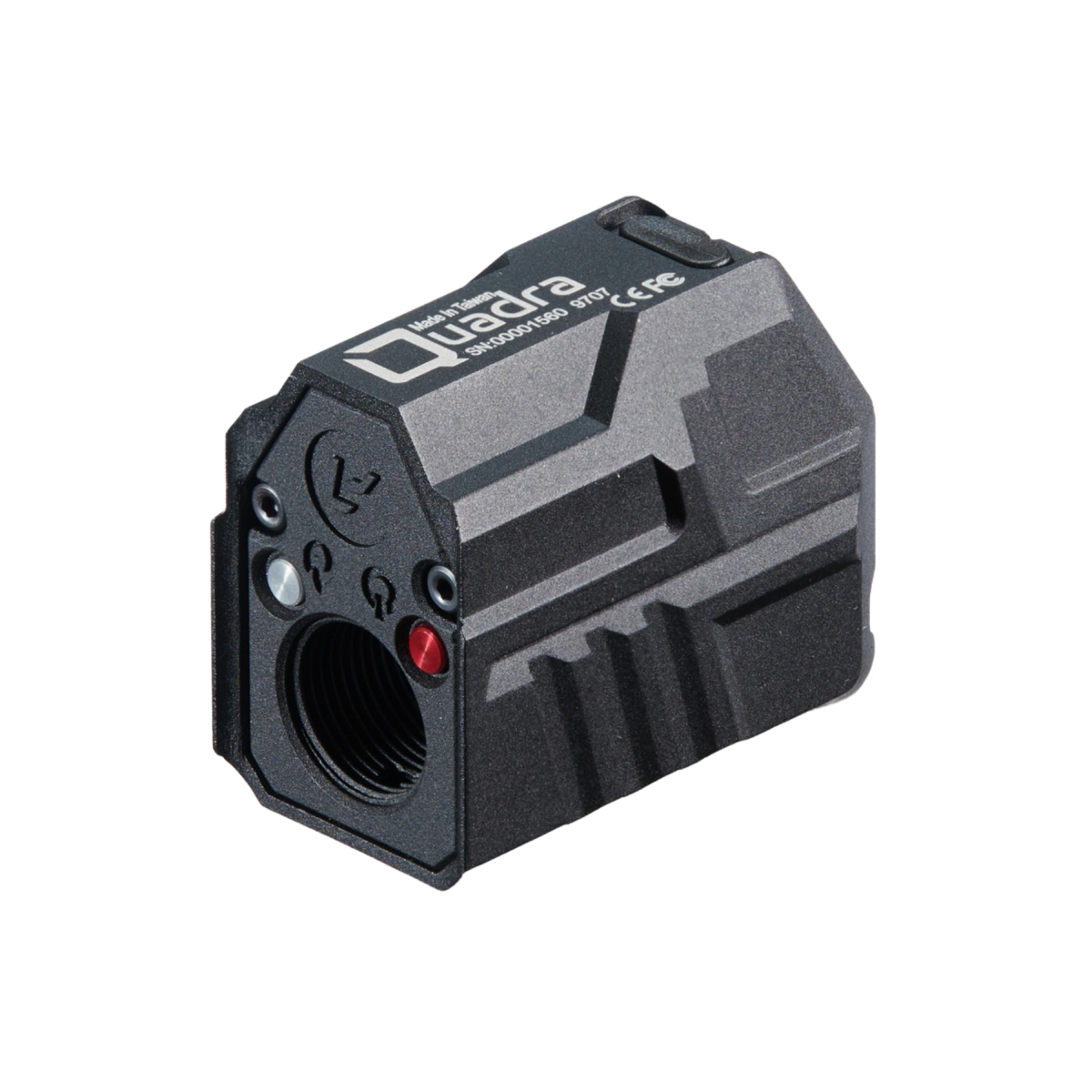

Acetech Quadra Cubic Design Tracer Unit

What's Included?

• 1x Acetech Quadra Cubic Design Tracer Unit

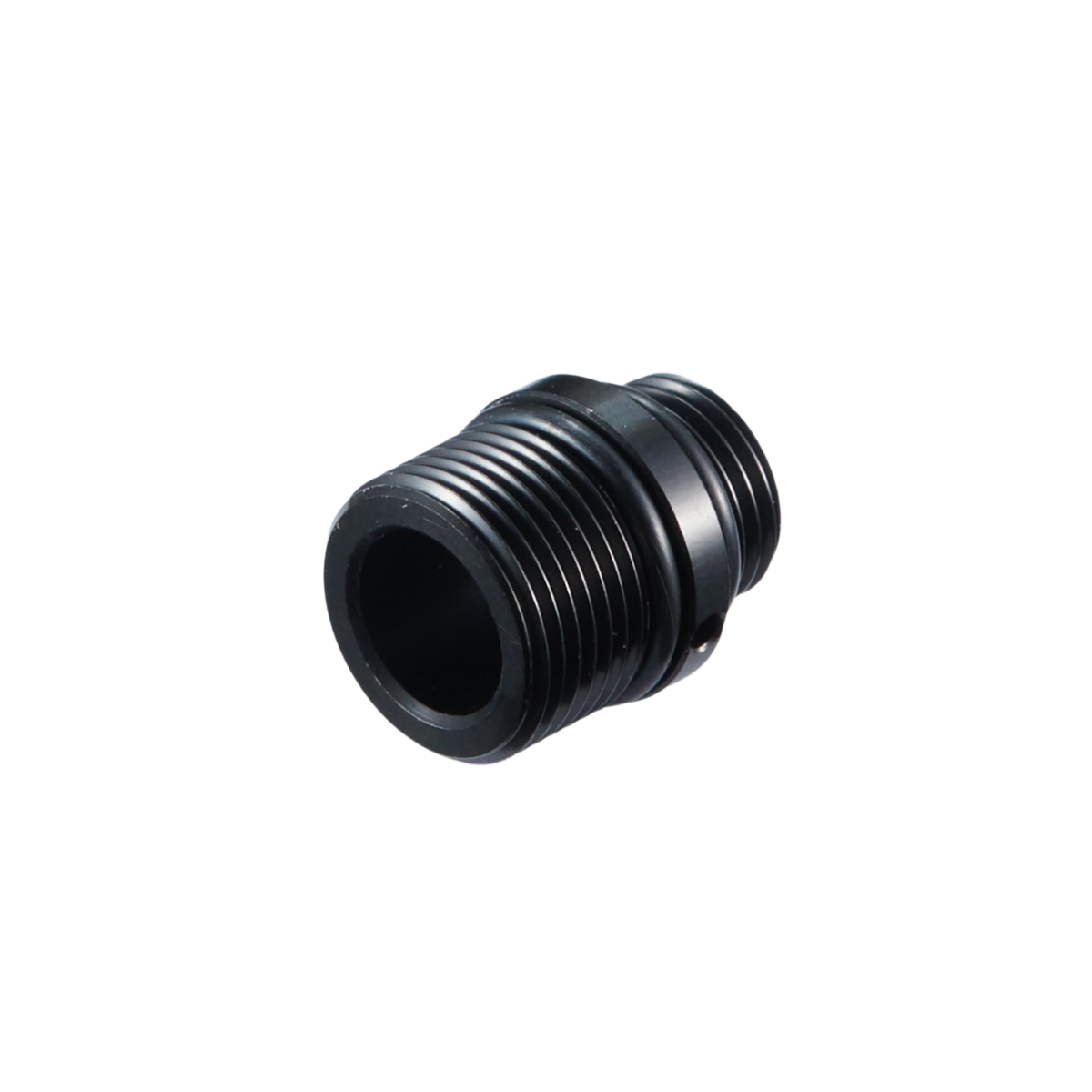

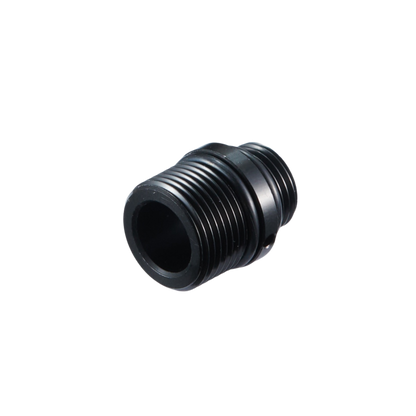

• 1x M14 (CCW) to M11 (CW) Adapter
• 1x 1.5mm Allen Key
• 1x M3x4 Set Screw
• 1x User Manual

What you need to use it

This tracer unit threads onto any 14mm CCW outer barrel. For pistols with 11mm CW threading, use the included adapter. Charge the internal Li-ion battery via the USB-C port before first use. Select your preferred mode (tracer only, flame/muzzle flash only, or combined), then fire tracer or standard BBs. The unit supports automatic activation and can handle high rates of fire up to approximately 35 rounds per second.

Features:

• Compact cubic / compensator-style design for a low-profile fit
• Tracer and flame simulation modes for enhanced muzzle flash effect
• Supports standard BBs as well as red and green tracer BBs
• Three selectable modes: Tracer only, Flame only, or Combined
• Precision CNC machined aluminum construction
• 14mm CCW threaded interface with included 11mm CW adapter
• USB Type-C charging for fast and convenient recharging
• Lightweight (approx. 50g) and compact dimensions
• Supports high rates of fire up to ~35 RPS
• Intuitive control interface with visual feedback

Technical Specifications:

• Brand: Acetech
• Model: ACT-QUADRA
• Material: CNC Aluminum
• Thread: 14mm CCW (11mm CW adapter included)
• Charging: USB-C
• Battery: Internal Li-ion (rechargeable)
• Dimensions: 45.5mm x 25.8mm x 37.3mm
• Weight: Approx. 0.05 kg (50g)
• BB Compatibility: Standard, Red Tracer, Green Tracer
• Max Rate of Fire: Up to ~35 RPS

Q&A:

Q: What is the Acetech Quadra Tracer Unit?
A: This is a compact, CNC aluminum tracer unit with a cubic/compensator-style design that illuminates tracer BBs and can simulate muzzle flash effects.

Q: What threading does it use?
A: It features standard 14mm CCW threading and includes an adapter for 11mm CW pistol barrels.

Q: How do I charge it?
A: Charge the internal Li-ion battery using a USB-C cable (cable not always included).

Q: What modes does it have?
A: It offers three selectable modes — Tracer only, Flame/Muzzle Flash only, and Combined Tracer + Flame.

Q: Why choose the Quadra?
A: It delivers bright tracer performance and realistic muzzle flash effects in a very compact, lightweight package ideal for both pistols and rifles, with modern USB-C charging.

About the Acetech Quadra Cubic Design Tracer Unit

The Acetech Quadra Cubic Design Tracer Unit is a compact, high-performance tracer designed for players who want strong visual impact without adding bulk. Its unique cubic/compensator-style profile is smaller and more streamlined than traditional cylindrical tracers like the Brighter C, making it especially well-suited for pistol platforms while remaining fully usable on AEGs.

Constructed from precision CNC-machined aluminum, the Quadra is durable yet lightweight at approximately 50 grams. It supports standard BBs as well as red and green tracer BBs, and features three selectable modes: tracer illumination, flame/muzzle flash simulation, or both combined. The unit threads onto 14mm CCW barrels and includes an 11mm CW adapter for broader pistol compatibility. Powered by an internal Li-ion battery with convenient USB-C charging, it supports high rates of fire up to around 35 rounds per second.

Whether you’re running night games, CQB, or simply want enhanced realism and visibility, the Acetech Quadra delivers reliable tracer performance and striking muzzle effects in a modern, low-profile package.
